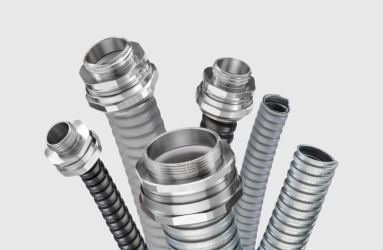

Conduit Pipes & Glands
Our conduit range covers protective pipes and the glands that terminate them. Polyamide and metal options are built for demanding plant, vehicle and outdoor environments, keeping the cable routed, supported and sealed at the entry.
- Conduit pipe with matching conduit glands
- Polyamide and metal systems
- For plant, vehicle and outdoor cable protection
Certifications
- IP68
- ISO 9001
- RoHS
Technical Summary
Series 950 Flexible metal conduit, galvanized steel IP54
| Thread | Outer Ø (mm) | Inner Ø (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 12 x 1,5 | 12 | 9 | 25 | 950.0700.0 | Enquire now |
| Pg 7 | 12 | 9 | 25 | 950.0700.0 | Enquire now |
| M 16 x 1,5 | 14 | 11 | 50 | 950.0900.0 | Enquire now |
| Pg 9 | 14 | 11 | 50 | 950.0900.0 | Enquire now |
| M 20 x 1,5 | 17 | 14 | 50 | 950.1100.0 | Enquire now |
| Pg 11 | 17 | 14 | 50 | 950.1100.0 | Enquire now |
| M 20 x 1,5 | 19 | 16 | 50 | 950.1300.0 | Enquire now |
| Pg 13,5 | 19 | 16 | 50 | 950.1300.0 | Enquire now |
| M 25 x 1,5 | 21 | 18 | 25 | 950.1600.0 | Enquire now |
| Pg 16 | 21 | 18 | 25 | 950.1600.0 | Enquire now |
| M 32 x 1,5 | 27 | 23 | 25 | 950.2100.0 | Enquire now |
| Pg 21 | 27 | 23 | 25 | 950.2100.0 | Enquire now |
| M 40 x 1,5 | 36 | 31 | 25 | 950.2900.0 | Enquire now |
| Pg 29 | 36 | 31 | 25 | 950.2900.0 | Enquire now |
| M 50 x 1,5 | 45 | 40 | 25 | 950.3600.0 | Enquire now |
| Pg 36 | 45 | 40 | 25 | 950.3600.0 | Enquire now |
| M 63 x 1,5 | 57,5 | 52 | 25 | 950.4800.0 | Enquire now |
| Pg 48 | 57,5 | 52 | 25 | 950.4800.0 | Enquire now |
Series 970 Flexible metal conduit, PVC-coated steel IP65
| Thread | Outer Ø (mm) | Inner Ø (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| M 12 x 1,5 | 13 | 9 | 25 | 970.0700.0 | Enquire now |
| Pg 7 | 13 | 9 | 25 | 970.0700.0 | Enquire now |
| M 16 x 1,5 | 15 | 11 | 50 | 970.0900.0 | Enquire now |
| Pg 9 | 15 | 11 | 50 | 970.0900.0 | Enquire now |
| M 20 x 1,5 | 18 | 14 | 50 | 970.1100.0 | Enquire now |
| Pg 11 | 18 | 14 | 50 | 970.1100.0 | Enquire now |
| M 20 x 1,5 | 20 | 16 | 50 | 970.1300.0 | Enquire now |
| Pg 13,5 | 20 | 16 | 50 | 970.1300.0 | Enquire now |
| M 25 x 1,5 | 22 | 18 | 25 | 970.1600.0 | Enquire now |
| Pg 16 | 22 | 18 | 25 | 970.1600.0 | Enquire now |
| M 32 x 1,5 | 28 | 23 | 25 | 970.2100.0 | Enquire now |
| Pg 21 | 28 | 23 | 25 | 970.2100.0 | Enquire now |
| M 40 x 1,5 | 37 | 31 | 25 | 970.2900.0 | Enquire now |
| Pg 29 | 37 | 31 | 25 | 970.2900.0 | Enquire now |
| M 50 x 1,5 | 47 | 40 | 25 | 970.3600.0 | Enquire now |
| Pg 36 | 47 | 40 | 25 | 970.3600.0 | Enquire now |
| M 63 x 1,5 | 59 | 52 | 25 | 970.4800.0 | Enquire now |
| Pg 48 | 59 | 52 | 25 | 970.4800.0 | Enquire now |
Series 940 Flexible polyamide conduit IP65
| Thread | Outer Ø (mm) | Inner Ø (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|
| Pg 7 | 10 | 6,5 | 100 | 940.0700.3 | Enquire now |
| Pg 9 | 13 | 9,5 | 100 | 940.0900.3 | Enquire now |
| Pg 11 | 16 | 11,5 | 100 | 940.1100.3 | Enquire now |
| Pg 13,5 | 18,5 | 14 | 50 | 940.1300.3 | Enquire now |
| Pg 16 | 21 | 15,5 | 50 | 940.1600.3 | Enquire now |
| Pg 21 | 28,5 | 21,5 | 50 | 940.2100.3 | Enquire now |
| Pg 29 | 34,5 | 27,5 | 50 | 940.2900.3 | Enquire now |
| Pg 36 | 42,5 | 36 | 25 | 940.3600.3 | Enquire now |
| Pg 48 | 54,5 | 46,5 | 25 | 940.4800.3 | Enquire now |
Series 205 EMC conduit gland IP66/68/69K, short connection
| Thread | Clamping range (mm) | SW1 (mm) | SW2 (mm) | SW3 (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| M 16 x 1,5 | 5,5 – 10 | 18,7 | 13 | 26 | 24 | 17 | 25 | 205.1611.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 18,7 | 13 | 26 | 24 | 17 | 25 | 205.1611.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 23,5 | 17 | 30 | 28 | 22 | 25 | 205.2016.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 23,5 | 17 | 30 | 28 | 22 | 25 | 205.2016.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 23,5 | 17 | 30 | 28 | 22 | 25 | 205.2016.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 28,5 | 22 | 36 | 34 | 30 | 25 | 205.2521.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 28,5 | 22 | 36 | 34 | 30 | 25 | 205.2521.1 | Enquire now |

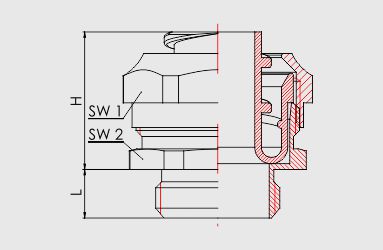

Series 208 Conduit gland brass IP54, short connection
| Thread | Clamping range (mm) | SW1 (mm) | SW2 (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Pg 7 | 9 – 13,3 | 19 | 19 | 13 | 6 | 50 | 208.0700.0 | Enquire now |
| Pg 9 | 10,5 – 15,5 | 21 | 20 | 14 | 6 | 50 | 208.0900.0 | Enquire now |
| Pg 11 | 13 – 18,7 | 26 | 24 | 16 | 6,5 | 50 | 208.1100.0 | Enquire now |
| M 12 x 1,5 | 9 – 13,3 | 19 | 19 | 13 | 5 | 50 | 208.1207.0 | Enquire now |
| Pg 13,5 | 15 – 21,2 | 28 | 26 | 17 | 6,3 | 50 | 208.1300.0 | Enquire now |
| Pg 16 | 17 – 23,5 | 30 | 28 | 18 | 6,5 | 50 | 208.1600.0 | Enquire now |
| M 16 x 1,5 | 10,5 – 15,5 | 21 | 20 | 14 | 5 | 50 | 208.1609.0 | Enquire now |
| M 20 x 1,5 | 13 – 18,7 | 26 | 24 | 16 | 6 | 50 | 208.2011.0 | Enquire now |
| M 20 x 1,5 | 15 – 21,2 | 28 | 26 | 17 | 6 | 50 | 208.2013.0 | Enquire now |
| Pg 21 | 22 – 28,5 | 36 | 34 | 22 | 8 | 50 | 208.2100.0 | Enquire now |
| M 25 x 1,5 | 17 – 23,5 | 30 | 28 | 18 | 7 | 50 | 208.2516.0 | Enquire now |
| Pg 29 | 30 – 38,5 | 47 | 45 | 26 | 9,5 | 20 | 208.2900.0 | Enquire now |
| M 32 x 1,5 | 22 – 28,5 | 36 | 34 | 22 | 8 | 50 | 208.3221.0 | Enquire now |
| Pg 36 | 39 – 48 | 60 | 57 | 29 | 10 | 15 | 208.3600.0 | Enquire now |
| M 40 x 1,5 | 30 – 38,5 | 47 | 45 | 26 | 8 | 25 | 208.4029.0 | Enquire now |
| Pg 48 | 50 – 61 | 75 | 70 | 36 | 15 | 5 | 208.4800.0 | Enquire now |
| M 50 x 1,5 | 39 – 48 | 60 | 57 | 29 | 9 | 15 | 208.5036.0 | Enquire now |
| M 63 x 1,5 | 50 – 61 | 75 | 70 | 36 | 14 | 5 | 208.6348.0 | Enquire now |
Series 240 K Conduit gland PA IP54
| Thread | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|
| Pg 7 | 10 | 100 | 240.0700.3 | Enquire now |
| Pg 9 | 10 | 100 | 240.0900.3 | Enquire now |
| Pg 11 | 12,5 | 100 | 240.1100.3 | Enquire now |
| Pg 13,5 | 12,5 | 50 | 240.1300.3 | Enquire now |
| Pg 16 | 13 | 50 | 240.1600.3 | Enquire now |
| Pg 21 | 13,5 | 50 | 240.2100.3 | Enquire now |
| Pg 29 | 15 | 50 | 240.2900.3 | Enquire now |
| Pg 36 | 15,5 | 25 | 240.3600.3 | Enquire now |
| Pg 48 | 16 | 25 | 240.4800.3 | Enquire now |
