Metallic Cable Glands

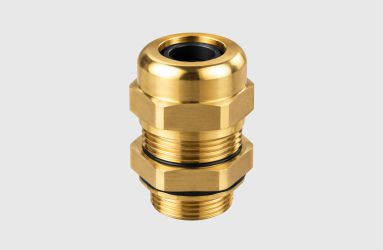

Our metallic cable glands are manufactured in brass, lead-free brass and stainless steel for long service in demanding environments. Standard and heavy-duty variants cover armoured (DC) and unarmoured cables, with metric, Pg and BSP threads as standard.

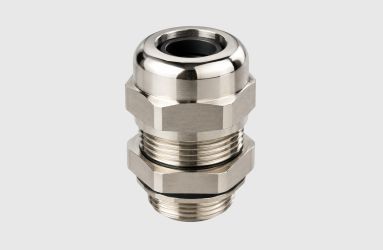

- Brass, lead-free brass and stainless steel
- Standard and heavy-duty for armoured and unarmoured cable
- Metric, Pg and BSP threads, with custom options on request
Certifications
- IP66
- IP68
- IP69K
- ISO 9001
- RoHS
Technical Summary
Series 356 Standard cable gland, long connection thread

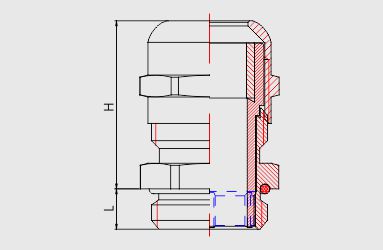

| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 – 6,5 | 14 | 20 | 5 | 100 | 356.1200.0 | Enquire now |
| M 12 x 1,5 | 2 – 5 | 14 | 20 | 5 | 100 | 356.1200.1 | Enquire now |
| M 16 x 1,5 | 5,5 – 10 | 17 | 22 | 5,5 | 100 | 356.1600.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 17 | 22 | 5,5 | 100 | 356.1600.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 22 | 24 | 6 | 50 | 356.2000.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 22 | 24 | 6 | 50 | 356.2000.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 22 | 24 | 6 | 50 | 356.2000.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 30 | 28 | 7 | 25 | 356.2500.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 30 | 28 | 7 | 25 | 356.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 21 | 34 | 30 | 8 | 10 | 356.3200.0 | Enquire now |
| M 32 x 1,5 | 13 – 19 | 34 | 30 | 8 | 10 | 356.3200.1 | Enquire now |
| M 40 x 1,5 | 19 – 27 | 44 | 35 | 8 | 10 | 356.4000.0 | Enquire now |
| M 40 x 1,5 | 16 – 23 | 44 | 35 | 8 | 10 | 356.4000.1 | Enquire now |
| M 40 x 1,5 | 12 – 18 | 44 | 35 | 8 | 10 | 356.4000.2 | Enquire now |
| M 50 x 1,5 | 26 – 35 | 54 | 43 | 9 | 5 | 356.5000.0 | Enquire now |
| M 50 x 1,5 | 21 – 29 | 54 | 43 | 9 | 5 | 356.5000.1 | Enquire now |
| M 50 x 1,5 | 19 – 25 | 54 | 43 | 9 | 5 | 356.5000.2 | Enquire now |
| M 63 x 1,5 | 39 – 48 | 66 | 44 | 10 | 5 | 356.6300.0 | Enquire now |
| M 63 x 1,5 | 27 – 38 | 66 | 44 | 10 | 5 | 356.6300.1 | Enquire now |
Series 351 Standard cable gland, short connection thread
| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| Pg 7 | 3 – 6,5 | 14 | 20 | 5 | 100 | 351.0700.0 | Enquire now |
| Pg 7 | 2 – 5 | 14 | 20 | 5 | 100 | 351.0700.1 | Enquire now |
| Pg 9 | 5,5 – 10 | 17 | 22 | 6 | 100 | 351.0900.0 | Enquire now |
| Pg 9 | 3 – 8 | 17 | 22 | 6 | 100 | 351.0900.1 | Enquire now |
| Pg 11 | 5,5 – 10 | 20 | 24 | 6 | 50 | 351.1100.0 | Enquire now |
| Pg 11 | 3 – 8 | 20 | 24 | 6 | 50 | 351.1100.1 | Enquire now |
| Pg 13,5 | 8 – 13 | 22 | 24 | 6,5 | 50 | 351.1300.0 | Enquire now |
| Pg 13,5 | 6 – 12 | 22 | 24 | 6,5 | 50 | 351.1300.1 | Enquire now |
| Pg 13,5 | 5 – 9 | 22 | 24 | 6,5 | 50 | 351.1300.2 | Enquire now |
| Pg 16 | 8 – 14 | 24 | 25 | 6,5 | 50 | 351.1600.0 | Enquire now |
| Pg 16 | 6 – 12 | 24 | 25 | 6,5 | 50 | 351.1600.1 | Enquire now |
| Pg 21 | 11 – 18 | 30 | 29 | 7 | 25 | 351.2100.0 | Enquire now |
| Pg 21 | 8 – 15 | 30 | 29 | 7 | 25 | 351.2100.1 | Enquire now |
| Pg 29 | 19 – 27 | 40 | 37 | 8 | 25 | 351.2900.0 | Enquire now |
| Pg 29 | 16 – 23 | 40 | 37 | 8 | 25 | 351.2900.1 | Enquire now |
| Pg 29 | 12 – 18 | 40 | 37 | 8 | 25 | 351.2900.2 | Enquire now |
| Pg 36 | 26 – 35 | 50 | 45 | 9 | 10 | 351.3600.0 | Enquire now |
| Pg 36 | 21 – 29 | 50 | 45 | 9 | 10 | 351.3600.1 | Enquire now |
| Pg 36 | 19 – 25 | 50 | 45 | 9 | 10 | 351.3600.2 | Enquire now |
| Pg 42 | 26 – 35 | 57 | 45 | 10 | 5 | 351.4200.0 | Enquire now |
| Pg 42 | 21 – 29 | 57 | 45 | 10 | 5 | 351.4200.1 | Enquire now |
| Pg 42 | 19 – 25 | 57 | 45 | 10 | 5 | 351.4200.2 | Enquire now |
| Pg 48 | 39 – 48 | 66 | 45 | 10 | 5 | 351.4800.0 | Enquire now |
| Pg 48 | 27 – 38 | 66 | 45 | 10 | 5 | 351.4800.1 | Enquire now |
Series 355 Heavy-duty cable gland
| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 – 6,5 | 14 | 20 | 12 | 100 | 355.1200.0 | Enquire now |
| M 12 x 1,5 | 2 – 5 | 14 | 20 | 12 | 100 | 355.1200.1 | Enquire now |
| M 16 x 1,5 | 5,5 – 10 | 17 | 22 | 12 | 100 | 355.1600.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 17 | 22 | 12 | 100 | 355.1600.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 22 | 24 | 12 | 50 | 355.2000.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 22 | 24 | 12 | 50 | 355.2000.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 22 | 24 | 12 | 50 | 355.2000.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 30 | 28 | 15 | 25 | 355.2500.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 30 | 28 | 15 | 25 | 355.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 21 | 34 | 30 | 15 | 10 | 355.3200.0 | Enquire now |
| M 32 x 1,5 | 13 – 19 | 34 | 30 | 15 | 10 | 355.3200.1 | Enquire now |
| M 40 x 1,5 | 19 – 27 | 44 | 35 | 15 | 10 | 355.4000.0 | Enquire now |
| M 40 x 1,5 | 16 – 23 | 44 | 35 | 15 | 10 | 355.4000.1 | Enquire now |
| M 40 x 1,5 | 12 – 18 | 44 | 35 | 15 | 10 | 355.4000.2 | Enquire now |
| M 50 x 1,5 | 26 – 35 | 54 | 43 | 15 | 5 | 355.5000.0 | Enquire now |
| M 50 x 1,5 | 21 – 29 | 54 | 43 | 15 | 5 | 355.5000.1 | Enquire now |
| M 50 x 1,5 | 19 – 25 | 54 | 43 | 15 | 5 | 355.5000.2 | Enquire now |
| M 63 x 1,5 | 39 – 48 | 66 | 44 | 15 | 5 | 355.6300.0 | Enquire now |
| M 63 x 1,5 | 27 – 38 | 66 | 44 | 15 | 5 | 355.6300.1 | Enquire now |
Series 357 Standard EMC cable gland
| Thread | Clamping range (mm) | H (mm) | D (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 – 6,5 | 14 | 5 | 20 | 5 | 100 | 357.1200.0 | Enquire now |
| M 12 x 1,5 | 2 – 5 | 14 | 5 | 20 | 5 | 100 | 357.1200.1 | Enquire now |
| M 16 x 1,5 | 5,5 – 10 | 17 | 8 | 24 | 5,5 | 100 | 357.1600.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 17 | 8 | 24 | 5,5 | 100 | 357.1600.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 22 | 11,5 | 26 | 6 | 50 | 357.2000.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 22 | 11,5 | 26 | 6 | 50 | 357.2000.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 22 | 11,5 | 26 | 6 | 50 | 357.2000.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 30 | 15 | 31 | 7 | 25 | 357.2500.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 30 | 15 | 31 | 7 | 25 | 357.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 21 | 34 | 18 | 33 | 8 | 10 | 357.3200.0 | Enquire now |
| M 32 x 1,5 | 13 – 19 | 34 | 18 | 33 | 8 | 10 | 357.3200.1 | Enquire now |
| M 40 x 1,5 | 19 – 27 | 44 | 23 | 39 | 8 | 10 | 357.4000.0 | Enquire now |
| M 40 x 1,5 | 16 – 23 | 44 | 23 | 39 | 8 | 10 | 357.4000.1 | Enquire now |
| M 40 x 1,5 | 12 – 18 | 44 | 23 | 39 | 8 | 10 | 357.4000.2 | Enquire now |
| M 50 x 1,5 | 26 – 35 | 54 | 31 | 47 | 9 | 5 | 357.5000.0 | Enquire now |
| M 50 x 1,5 | 21 – 29 | 54 | 31 | 47 | 9 | 5 | 357.5000.1 | Enquire now |
| M 50 x 1,5 | 19 – 25 | 54 | 31 | 47 | 9 | 5 | 357.5000.2 | Enquire now |
| M 63 x 1,5 | 39 – 48 | 66 | 43 | 48 | 10 | 5 | 357.6300.0 | Enquire now |
| M 63 x 1,5 | 27 – 38 | 66 | 43 | 48 | 10 | 5 | 357.6300.1 | Enquire now |
Series 353 Standard EMC cable gland, AISI 303
| Thread | Clamping range (mm) | H (mm) | D (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|
| Pg 7 | 3 – 6,5 | 14 | 5 | 22 | 5 | 100 | 353.0700.0 | Enquire now |
| Pg 9 | 5,5 – 10 | 17 | 8 | 23 | 6 | 100 | 353.0900.0 | Enquire now |
| Pg 11 | 5,5 – 10 | 20 | 8 | 24 | 6 | 50 | 353.1100.0 | Enquire now |
| Pg 13,5 | 8 – 13 | 22 | 11,5 | 26 | 6,5 | 50 | 353.1300.0 | Enquire now |
| Pg 16 | 8 – 14 | 24 | 12 | 27 | 6,5 | 50 | 353.1600.0 | Enquire now |
| Pg 21 | 11 – 18 | 30 | 15 | 30 | 7 | 25 | 353.2100.0 | Enquire now |
| Pg 29 | 19 – 27 | 40 | 23 | 39 | 8 | 25 | 353.2900.0 | Enquire now |
Series 358 Standard EMC cable gland with strain relief (ZZ)
| Thread | Clamping range (mm) | H (mm) | D (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 – 6,5 | 14 | 5 | 20 | 12 | 100 | 358.1200.0 | Enquire now |
| M 12 x 1,5 | 2 – 5 | 14 | 5 | 20 | 12 | 100 | 358.1200.1 | Enquire now |
| M 16 x 1,5 | 5,5 – 10 | 17 | 8 | 24 | 12 | 100 | 358.1600.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 17 | 8 | 24 | 12 | 100 | 358.1600.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 22 | 11,5 | 26 | 12 | 50 | 358.2000.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 22 | 11,5 | 26 | 12 | 50 | 358.2000.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 22 | 11,5 | 26 | 12 | 50 | 358.2000.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 30 | 15 | 31 | 15 | 25 | 358.2500.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 30 | 15 | 31 | 15 | 25 | 358.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 21 | 34 | 18 | 33 | 15 | 10 | 358.3200.0 | Enquire now |
| M 32 x 1,5 | 13 – 19 | 34 | 18 | 33 | 15 | 10 | 358.3200.1 | Enquire now |
| M 40 x 1,5 | 19 – 27 | 44 | 23 | 39 | 15 | 10 | 358.4000.0 | Enquire now |
| M 40 x 1,5 | 16 – 23 | 44 | 23 | 39 | 15 | 10 | 358.4000.1 | Enquire now |
| M 40 x 1,5 | 12 – 18 | 44 | 23 | 39 | 15 | 10 | 358.4000.2 | Enquire now |
| M 50 x 1,5 | 26 – 35 | 54 | 31 | 47 | 15 | 5 | 358.5000.0 | Enquire now |
| M 50 x 1,5 | 21 – 29 | 54 | 31 | 47 | 15 | 5 | 358.5000.1 | Enquire now |
| M 50 x 1,5 | 19 – 25 | 54 | 31 | 47 | 15 | 5 | 358.5000.2 | Enquire now |
| M 63 x 1,5 | 39 – 48 | 66 | 43 | 48 | 15 | 5 | 358.6300.0 | Enquire now |
| M 63 x 1,5 | 27 – 38 | 66 | 43 | 48 | 15 | 5 | 358.6300.1 | Enquire now |
Series 359 Standard EMC cable gland, AISI 316Ti
| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 – 6,5 | 14 | 20 | 5 | 100 | 359.1200.0 | Enquire now |
| M 12 x 1,5 | 2 – 5 | 14 | 20 | 5 | 100 | 359.1200.1 | Enquire now |
| M 16 x 1,5 | 5,5 – 10 | 17 | 24 | 5,5 | 100 | 359.1600.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 17 | 24 | 5,5 | 100 | 359.1600.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 22 | 26 | 6 | 50 | 359.2000.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 22 | 26 | 6 | 50 | 359.2000.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 22 | 26 | 6 | 50 | 359.2000.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 30 | 31 | 7 | 25 | 359.2500.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 30 | 31 | 7 | 25 | 359.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 21 | 34 | 33 | 8 | 10 | 359.3200.0 | Enquire now |
| M 32 x 1,5 | 13 – 19 | 34 | 33 | 8 | 10 | 359.3200.1 | Enquire now |
| M 40 x 1,5 | 19 – 27 | 44 | 39 | 8 | 10 | 359.4000.0 | Enquire now |
| M 40 x 1,5 | 16 – 23 | 44 | 39 | 8 | 10 | 359.4000.1 | Enquire now |
| M 40 x 1,5 | 12 – 18 | 44 | 39 | 8 | 10 | 359.4000.2 | Enquire now |
| M 50 x 1,5 | 26 – 35 | 54 | 47 | 9 | 5 | 359.5000.0 | Enquire now |
| M 50 x 1,5 | 21 – 29 | 54 | 47 | 9 | 5 | 359.5000.1 | Enquire now |
| M 50 x 1,5 | 19 – 25 | 54 | 47 | 9 | 5 | 359.5000.2 | Enquire now |
| M 63 x 1,5 | 39 – 48 | 66 | 48 | 10 | 5 | 359.6300.0 | Enquire now |
| M 63 x 1,5 | 27 – 38 | 66 | 48 | 10 | 5 | 359.6300.1 | Enquire now |
Series 305 Standard UD cable gland, long connection
| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| g / | 5 – 7 | 14 | 22 | 5 | 100 | 305.1200.1 | Enquire now |
| M 16 x 1,5 | 5 – 10 | 17 | 24 | 5,5 | 50 | 305.1600.0 | Enquire now |
| M 16 x 1,5 | 8 – 10 | 17 | 24 | 5,5 | 50 | 305.1600.1 | Enquire now |
| M 16 x 1,5 | 5 – 7,5 | 17 | 24 | 5,5 | 50 | 305.1600.2 | Enquire now |
| M 16 x 1,5 | 4 – 6,5 | 17 | 24 | 5,5 | 50 | 305.1600.3 | Enquire now |
| M 20 x 1,5 | 8 – 14 | 22 | 26 | 6 | 50 | 305.2000.0 | Enquire now |
| M 20 x 1,5 | 11 – 14 | 22 | 26 | 6 | 50 | 305.2000.1 | Enquire now |
| M 25 x 1,5 | 12 – 19 | 30 | 31 | 7 | 25 | 305.2500.0 | Enquire now |
| M 25 x 1,5 | 15 – 19 | 30 | 31 | 7 | 25 | 305.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 22 | 34 | 32 | 8 | 25 | 305.3200.0 | Enquire now |
| M 32 x 1,5 | 19 – 22 | 34 | 32 | 8 | 25 | 305.3200.1 | Enquire now |
| M 40 x 1,5 | 22 – 28 | 44 | 39 | 8 | 10 | 305.4000.0 | Enquire now |
| M 40 x 1,5 | 25 – 28 | 44 | 39 | 8 | 10 | 305.4000.1 | Enquire now |
| M 50 x 1,5 | 28 – 36 | 54 | 47 | 9 | 5 | 305.5000.0 | Enquire now |
| M 50 x 1,5 | 32 – 36 | 54 | 47 | 9 | 5 | 305.5000.1 | Enquire now |
| M 63 x 1,5 | 34 – 49 | 66 | 48 | 10 | 5 | 305.6300.0 | Enquire now |
| g / | 25 – 36 | 66 | 48 | 10 | 5 | 305.6300.2 | Enquire now |
Series 300 Standard UD cable gland, short connection
| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| Pg 7 | 5 – 7 | 14 | 21 | 5 | 100 | 300.0700.1 | Enquire now |
| Pg 9 | 5 – 10 | 17 | 22 | 6 | 50 | 300.0900.0 | Enquire now |
| Pg 9 | 8 – 10 | 17 | 22 | 6 | 50 | 300.0900.1 | Enquire now |
| Pg 9 | 5 – 7,5 | 17 | 22 | 6 | 50 | 300.0900.2 | Enquire now |
| Pg 9 | 4 – 6,5 | 17 | 22 | 6 | 50 | 300.0900.3 | Enquire now |
| Pg 11 | 5 – 10 | 20 | 24 | 6 | 50 | 300.1100.0 | Enquire now |
| Pg 11 | 8 – 10 | 20 | 24 | 6 | 50 | 300.1100.1 | Enquire now |
| Pg 11 | 4 – 6,5 | 20 | 24 | 6 | 50 | 300.1100.2 | Enquire now |
| Pg 11 | 5 – 7,5 | 20 | 24 | 6 | 50 | 300.1100.3 | Enquire now |
| Pg 13,5 | 8 – 14 | 22 | 25 | 6,5 | 50 | 300.1300.0 | Enquire now |
| Pg 13,5 | 11 – 14 | 22 | 25 | 6,5 | 50 | 300.1300.1 | Enquire now |
| Pg 16 | 10 – 15 | 24 | 27 | 6,5 | 50 | 300.1600.0 | Enquire now |
| Pg 16 | 13 – 15 | 24 | 27 | 6,5 | 50 | 300.1600.1 | Enquire now |
| Pg 21 | 12 – 19 | 30 | 28 | 7 | 25 | 300.2100.0 | Enquire now |
| Pg 21 | 15 – 19 | 30 | 28 | 7 | 25 | 300.2100.1 | Enquire now |
| Pg 29 | 22 – 28 | 40 | 36 | 8 | 25 | 300.2900.0 | Enquire now |
| Pg 29 | 25 – 28 | 40 | 36 | 8 | 25 | 300.2900.1 | Enquire now |
| Pg 36 | 28 – 36 | 50 | 45 | 9 | 10 | 300.3600.0 | Enquire now |
| Pg 36 | 32 – 36 | 50 | 45 | 9 | 10 | 300.3600.1 | Enquire now |
| Pg 48 | 34 – 49 | 66 | 46 | 10 | 5 | 300.4800.0 | Enquire now |
| Pg 48 | 43 – 49 | 66 | 46 | 10 | 5 | 300.4800.1 | Enquire now |
| Pg 48 | 25 – 36 | 66 | 46 | 10 | 5 | 300.4800.2 | Enquire now |
Series 010 IP54 cable gland, metric thread
| Thread | Clamping range (mm) | Sealing ring | Ring type | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| G 1/4" | 4 – 6 | S | – | 13 | 15 | 5 | 100 | 010.0014.0 | Enquire now |
| G 5/8" | 12 – 14 | S | – | 22 | 20 | 6,5 | 50 | 010.0058.0 | Enquire now |
| G 1" | 15 – 25 | UNI | – | 32 | 25 | 8 | 50 | 010.0100.7 | Enquire now |
| Pg 7 | 4 – 6 | S | – | 13 | 15 | 5 | 100 | 010.0700.0 | Enquire now |
| Pg 9 | 8 – 10 | S | – | 15 | 16 | 6 | 100 | 010.0900.0 | Enquire now |
| Pg 11 | 8 – 10 | S | – | 18 | 17 | 6 | 50 | 010.1100.0 | Enquire now |
| Pg 13,5 | 10 – 12 | S | – | 20 | 19 | 6,5 | 50 | 010.1300.0 | Enquire now |
| Pg 16 | 12 – 14 | S | – | 22 | 20 | 6,5 | 50 | 010.1600.0 | Enquire now |
| M 16 x 1,5 | 8 – 10 | S | – | 15 | 16 | 5 | 100 | 010.1609.0 | Enquire now |
| M 20 x 1,5 | 8 – 10 | S | – | 18 | 17 | 6 | 50 | 010.2011.0 | Enquire now |
| M 20 x 1,5 | 10 – 12 | S | – | 20 | 19 | 6 | 50 | 010.2013.0 | Enquire now |
| M 20 x 1,5 | 12 – 14 | S | – | 22 | 20 | 6 | 50 | 010.2016.0 | Enquire now |
| Pg 21 | 17 – 19 | S | – | 28 | 22 | 7 | 50 | 010.2100.0 | Enquire now |
| M 25 x 1,5 | 17 – 19 | S | – | 28 | 22 | 7 | 50 | 010.2521.0 | Enquire now |
| Pg 29 | 26 – 28 | S | – | 37 | 25 | 8 | 25 | 010.2900.0 | Enquire now |
| M 32 x 1,5 | 26 – 27 | S | – | 37 | 25 | 8 | 25 | 010.3229.0 | Enquire now |
| Pg 36 | 23 – 34 | UNI | – | 47 | 29 | 9 | 20 | 010.3600.6 | Enquire now |
| M 40 x 1,5 | 23 – 34 | UNI | – | 47 | 30 | 8 | 10 | 010.4036.6 | Enquire now |
| Pg 42 | 39 – 41 | S | – | 54 | 33 | 10 | 10 | 010.4200.0 | Enquire now |
| M 50 x 1,5 | 39 – 41 | S | – | 54 | 34 | 9 | 5 | 010.5042.0 | Enquire now |
| M 63 x 1,5 | 35 – 46 | UNI | – | 60 | 36 | 10 | 5 | 010.6348.6 | Enquire now |
Series 011 IP54 cable gland, metric thread (variant)
| Thread | Clamping range (mm) | Sealing ring | Ring type | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| M 16 x 1,5 | 2 – 10 | UNI | – | 16 | 16 | 5 | 100 | 011.1600.7 | Enquire now |
| M 20 x 1,5 | 3 – 14 | UNI | – | 20 | 19 | 6 | 50 | 011.2000.7 | Enquire now |
| M 25 x 1,5 | 7,5 – 18 | UNI | – | 25 | 22 | 7 | 50 | 011.2500.7 | Enquire now |
| M 32 x 1,5 | 15 – 25 | UNI | – | 32 | 24 | 8 | 25 | 011.3200.7 | Enquire now |
| M 40 x 1,5 | 22 – 33 | UNI | – | 40 | 26 | 8 | 20 | 011.4000.7 | Enquire now |
| M 50 x 1,5 | 31 – 42 | UNI | – | 50 | 29 | 9 | 5 | 011.5000.7 | Enquire now |
| M 63 x 1,5 | 40 – 51 | UNI | – | 64 | 35 | 10 | 5 | 011.6300.7 | Enquire now |
Series 020 IP54 cable gland, PG thread
| Thread | Clamping range (mm) | Sealing ring | Ring type | D (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|---|
| G 1/4" | 4 – 6 | S | – | 13 | 15 | 14 | 100 | 020.0014.0 | Enquire now |
| G 5/8" | 12 – 14 | S | – | 22 | 20 | 14,5 | 50 | 020.0058.0 | Enquire now |
| Pg 11 | 6,5 – 13,5 | UNI | – | 18 | 17 | 15 | 50 | 020.1100.6 | Enquire now |
| Pg 13,5 | 6,5 – 13,5 | UNI | – | 20 | 19 | 15 | 50 | 020.1300.6 | Enquire now |
| G 3/8" | 10 – 12 | S | – | 20 | 19 | 14,5 | 50 | 020.1338.0 | Enquire now |
| Pg 16 | 6,5 – 16 | UNI | – | 22 | 20 | 15 | 50 | 020.1600.6 | Enquire now |
| M 16 x 1,5 | 4 – 11 | UNI | – | 15 | 16 | 10 | 100 | 020.1609.6 | Enquire now |
| G 1/2" | 6,5 – 16 | UNI | – | 22 | 20 | 14,5 | 50 | 020.1612.6 | Enquire now |
| M 20 x 1,5 | 6,5 – 13,5 | UNI | – | 18 | 17 | 10 | 50 | 020.2011.6 | Enquire now |
| M 20 x 1,5 | 6,5 – 13,5 | UNI | – | 20 | 19 | 10 | 50 | 020.2013.6 | Enquire now |
| M 20 x 1,5 | 6,5 – 16 | UNI | – | 22 | 20 | 10 | 50 | 020.2016.6 | Enquire now |
| Pg 21 | 9 – 20 | UNI | – | 28 | 22 | 15 | 50 | 020.2100.6 | Enquire now |
| M 25 x 1,5 | 9 – 20 | UNI | – | 28 | 22 | 11 | 50 | 020.2521.6 | Enquire now |
| Pg 29 | 17 – 28 | UNI | – | 37 | 25 | 15 | 50 | 020.2900.6 | Enquire now |
| M 32 x 1,5 | 17 – 28 | UNI | – | 37 | 25 | 13 | 25 | 020.3229.6 | Enquire now |
| M 40 x 1,5 | 23 – 34 | UNI | – | 47 | 30 | 13 | 10 | 020.4036.6 | Enquire now |
| M 50 x 1,5 | 29 – 40 | UNI | – | 54 | 34 | 14 | 5 | 020.5042.6 | Enquire now |
| M 63 x 1,5 | 35 – 46 | UNI | – | 60 | 36 | 14 | 5 | 020.6348.6 | Enquire now |
Series 111 IP54 cable gland, BSP thread
| Thread | Clamping range (mm) | Sealing ring | Ring type | SW1 (mm) | SW2 (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| M 16 x 1,5 | 2 – 10 | UNI | – | 16 | 18 | 16 | 5 | 100 | 111.1600.7 | Enquire now |
| M 20 x 1,5 | 3 – 14 | UNI | – | 20 | 22 | 19 | 6 | 50 | 111.2000.7 | Enquire now |
| M 25 x 1,5 | 7,5 – 18 | UNI | – | 25 | 27 | 22 | 7 | 50 | 111.2500.7 | Enquire now |
| M 32 x 1,5 | 15 – 25 | UNI | – | 32 | 34 | 24 | 8 | 25 | 111.3200.7 | Enquire now |
| M 40 x 1,5 | 22 – 33 | UNI | – | 40 | 42 | 26 | 8 | 20 | 111.4000.7 | Enquire now |
| M 50 x 1,5 | 31 – 42 | UNI | – | 50 | 52 | 29 | 9 | 5 | 111.5000.7 | Enquire now |
| M 63 x 1,5 | 40 – 51 | UNI | – | 64 | 66 | 35 | 10 | 5 | 111.6300.7 | Enquire now |
Series 110 IP54 cable gland, BSP thread (variant)
| Thread | Clamping range (mm) | Sealing ring | Ring type | SW1 (mm) | SW2 (mm) | H (mm) | L (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| G 3/4" | 8 – 18 | UNI | – | 25 | 27 | 22 | 7 | 50 | 110.0034.7 | Enquire now |
| G 2" | 35 – 45 | UNI | – | 60 | 64 | 36 | 10 | 5 | 110.0200.6 | Enquire now |
| Pg 7 | 4 – 6 | S | – | 13 | 14 | 15 | 5 | 100 | 110.0700.0 | Enquire now |
| Pg 9 | 8 – 10 | S | – | 15 | 17 | 16 | 6 | 100 | 110.0900.0 | Enquire now |
| Pg 11 | 8 – 10 | S | – | 18 | 20 | 17 | 6 | 50 | 110.1100.0 | Enquire now |
| Pg 13,5 | 10 – 12 | S | – | 20 | 22 | 19 | 6,5 | 50 | 110.1300.0 | Enquire now |
| G 1/2" | 7 – 13 | UNI | – | 20 | 22 | 20 | 6,5 | 50 | 110.1312.6 | Enquire now |
| Pg 16 | 12 – 14 | S | – | 22 | 24 | 20 | 6,5 | 50 | 110.1600.0 | Enquire now |
| M 16 x 1,5 | 8 – 10 | S | – | 15 | 18 | 16 | 5 | 100 | 110.1609.0 | Enquire now |
| M 20 x 1,5 | 8 – 10 | S | – | 18 | 22 | 17 | 6 | 50 | 110.2011.0 | Enquire now |
| M 20 x 1,5 | 10 – 12 | S | – | 20 | 22 | 19 | 6 | 50 | 110.2013.0 | Enquire now |
| M 20 x 1,5 | 12 – 14 | S | – | 22 | 24 | 20 | 6 | 50 | 110.2016.0 | Enquire now |
| Pg 21 | 17 – 19 | S | – | 28 | 30 | 22 | 7 | 50 | 110.2100.0 | Enquire now |
| M 25 x 1,5 | 17 – 19 | S | – | 28 | 30 | 22 | 7 | 50 | 110.2521.0 | Enquire now |
| Pg 29 | 26 – 28 | S | – | 37 | 40 | 25 | 8 | 25 | 110.2900.0 | Enquire now |
| M 32 x 1,5 | 26 – 27 | S | – | 37 | 39 | 25 | 8 | 25 | 110.3229.0 | Enquire now |
| Pg 36 | 23 – 34 | UNI | – | 47 | 50 | 29 | 9 | 20 | 110.3600.6 | Enquire now |
| M 40 x 1,5 | 23 – 34 | UNI | – | 47 | 50 | 30 | 8 | 10 | 110.4036.6 | Enquire now |
| Pg 42 | 39 – 41 | S | – | 54 | 57 | 33 | 10 | 10 | 110.4200.0 | Enquire now |
| Pg 48 | 35 – 46 | UNI | – | 60 | 64 | 36 | 10 | 5 | 110.4800.6 | Enquire now |
| M 50 x 1,5 | 39 – 41 | S | – | 54 | 57 | 34 | 9 | 5 | 110.5042.0 | Enquire now |
| M 63 x 1,5 | 35 – 46 | UNI | – | 60 | 66 | 36 | 10 | 5 | 110.6348.6 | Enquire now |
Series 392 Standard stainless steel cable gland, AISI 303
| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 – 6,5 | 14 | 20 | 5 | 100 | 392.1200.0 | Enquire now |
| g 28 | 2 – 5 | 14 | 20 | 5 | 100 | 392.1200.1 | Enquire now |
| M 16 x 1,5 | 5,5 – 10 | 17 | 22 | 5,5 | 100 | 392.1600.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 17 | 22 | 5,5 | 100 | 392.1600.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 22 | 24 | 6 | 50 | 392.2000.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 22 | 24 | 6 | 50 | 392.2000.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 22 | 24 | 6 | 50 | 392.2000.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 30 | 28 | 7 | 25 | 392.2500.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 30 | 28 | 7 | 25 | 392.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 21 | 34 | 30 | 8 | 10 | 392.3200.0 | Enquire now |
| M 32 x 1,5 | 13 – 19 | 34 | 30 | 8 | 10 | 392.3200.1 | Enquire now |
| M 40 x 1,5 | 19 – 27 | 44 | 35 | 8 | 10 | 392.4000.0 | Enquire now |
| M 40 x 1,5 | 16 – 23 | 44 | 35 | 8 | 10 | 392.4000.1 | Enquire now |
| M 40 x 1,5 | 12 – 18 | 44 | 35 | 8 | 10 | 392.4000.2 | Enquire now |
| M 50 x 1,5 | 26 – 35 | 54 | 43 | 9 | 5 | 392.5000.0 | Enquire now |
| M 50 x 1,5 | 21 – 29 | 54 | 43 | 9 | 5 | 392.5000.1 | Enquire now |
| M 50 x 1,5 | 19 – 25 | 54 | 43 | 9 | 5 | 392.5000.2 | Enquire now |
| M 63 x 1,5 | 39 – 48 | 66 | 44 | 10 | 5 | 392.6300.0 | Enquire now |
| M 63 x 1,5 | 27 – 38 | 66 | 44 | 10 | 5 | 392.6300.1 | Enquire now |
Series 394 Standard stainless steel cable gland, AISI 316Ti
| Thread | Clamping range (mm) | H (mm) | L (mm) | l (mm) | Pack qty | Ref. no. | Enquiry |
|---|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 – 6,5 | 14 | 20 | 5 | 100 | 394.1200.0 | Enquire now |
| M 12 x 1,5 | 2 – 5 | 14 | 20 | 5 | 100 | 394.1200.1 | Enquire now |
| M 16 x 1,5 | 5,5 – 10 | 17 | 22 | 5,5 | 100 | 394.1600.0 | Enquire now |
| M 16 x 1,5 | 3 – 8 | 17 | 22 | 5,5 | 100 | 394.1600.1 | Enquire now |
| M 20 x 1,5 | 8 – 13 | 22 | 24 | 6 | 50 | 394.2000.0 | Enquire now |
| M 20 x 1,5 | 6 – 12 | 22 | 24 | 6 | 50 | 394.2000.1 | Enquire now |
| M 20 x 1,5 | 5 – 9 | 22 | 24 | 6 | 50 | 394.2000.2 | Enquire now |
| M 25 x 1,5 | 11 – 18 | 30 | 28 | 7 | 25 | 394.2500.0 | Enquire now |
| M 25 x 1,5 | 8 – 15 | 30 | 28 | 7 | 25 | 394.2500.1 | Enquire now |
| M 32 x 1,5 | 15 – 21 | 34 | 30 | 8 | 10 | 394.3200.0 | Enquire now |
| M 32 x 1,5 | 13 – 19 | 34 | 30 | 8 | 10 | 394.3200.1 | Enquire now |
| M 40 x 1,5 | 19 – 27 | 44 | 35 | 8 | 10 | 394.4000.0 | Enquire now |
| M 40 x 1,5 | 16 – 23 | 44 | 35 | 8 | 10 | 394.4000.1 | Enquire now |
| M 40 x 1,5 | 12 – 18 | 44 | 35 | 8 | 10 | 394.4000.2 | Enquire now |
| M 50 x 1,5 | 26 – 35 | 54 | 43 | 9 | 5 | 394.5000.0 | Enquire now |
| M 50 x 1,5 | 21 – 29 | 54 | 43 | 9 | 5 | 394.5000.1 | Enquire now |
| M 50 x 1,5 | 19 – 25 | 54 | 43 | 9 | 5 | 394.5000.2 | Enquire now |
| M 63 x 1,5 | 39 – 48 | 66 | 44 | 10 | 5 | 394.6300.0 | Enquire now |
| M 63 x 1,5 | 27 – 38 | 66 | 44 | 10 | 5 | 394.6300.1 | Enquire now |
Metallic Cable Glands
Recommended Accessories
Customers viewing this product often add these complementary parts to complete the cable entry.
Cable Gland Accessories
Lock nuts, reducers, adapters and stopping plugs that complete the cable gland system.
- IP66
- IP68
- ISO 9001
- RoHS
Conduit Pipes & Glands
Protective conduit pipes with matching glands in polyamide and metal for plant, vehicle and outdoor cable runs.
- IP68
- ISO 9001
- RoHS
Need A Specified Cable Gland? Talk To Our Team.
Tell us the application, cable type and environment — we will help you choose the right gland and accessories.
Contact UsHow We Can Help:
- Match glands to cable type, thread and environment
- IP66 / IP68 / IP69K sealing guidance
- Metal, polyamide, EMC and conduit ranges
- Custom threads, materials, inserts and finishes
- ISO 9001, 14001 and 45001 certified production in Pune
- Technical support from the Geissel India team
